Filter Direct Form I Time Varying
Implement a time varying Direct Form I realization of a filter
Library
Filters
Description

The Filter Direct Form I Time Varying block implements a Direct Form I realization of the specified filter. The block only supports single input-single output filters.
The block automatically selects the data types and scalings of the output, the coefficients, and any temporary variables.

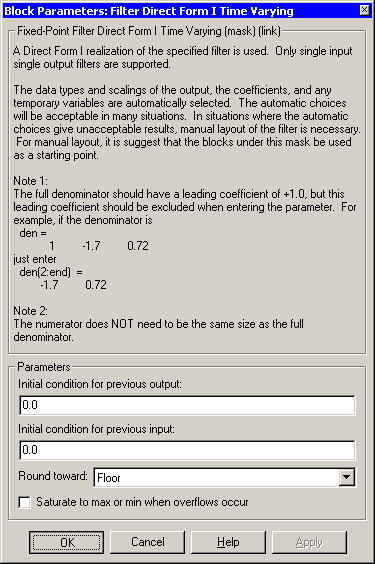

Parameters and Dialog Box

- Initial condition for previous output
- Set the initial condition for the previous output.
- Initial condition for previous input
- Set the initial condition for the previous input.
- Round toward
- Rounding mode for the fixed-point output.
- Saturate to max or min when overflows occur
- If selected, fixed-point overflows saturate.
Characteristics
Input Port u
|
Any data type supported by the blockset--it must be a scalar
|
Input Port Num
|
Any data type supported by the blockset--it must be a scalar
|
Input Port Den No Lead
|
Any data type supported by the blockset--it must be a scalar
|
Output Port
|
Any data type supported by the blockset
|
Direct Feedthrough
|
Yes
|
Scalar Expansion
|
Of initial conditions
|
Vectorized
|
No
|
See Also
Filter Direct Form I, FIR
