Filter Direct Form II (Fixed-Point Blockset)

Implement a Direct Form II realization of a filter

Library

Filters

Description

The Filter Direct Form II block implements a Direct Form II realization of the filter specified by the Numerator coefficients and the Denominator coefficients excluding lead parameters. The block only supports single input-single output filters.

The block automatically selects the data types and scalings of the output, the coefficients, and any temporary variables.

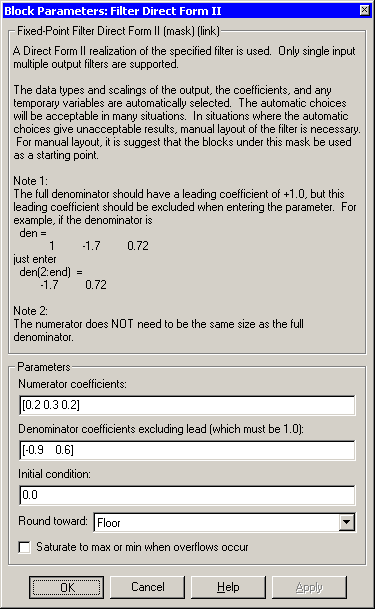

Parameters and Dialog Box

Numerator coefficients: Coefficients for the numerator of the filter.
Denominator coefficients excluding lead: Coefficients for the denominator of the filter, excluding the leading coefficient, which must be 1.0.
Initial condition: Set the initial condition.
Round toward: Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur: If selected, fixed-point overflows saturate.

Characteristics

Input Ports
Any data type supported by the blockset--it must be a scalar

Output Port
Any data type supported by the blockset

Direct Feedthrough
Yes

Scalar Expansion
Of initial conditions

Vectorized
No

Input Ports	Any data type supported by the blockset--it must be a scalar
Output Port	Any data type supported by the blockset
Direct Feedthrough	Yes
Scalar Expansion	Of initial conditions
Vectorized	No

See Also

Filter Direct Form II Time Varying, FIR

Filter Direct Form I Time Varying Filter Direct Form II Time Varying
