Parallel connection of two LTI models
Syntax
Description
parallel
connects two LTI models in parallel. This function accepts any type of LTI model. The two systems must be either both continuous or both discrete with identical sample time. Static gains are neutral and can be specified as regular matrices.
sys = parallel(sys1,sys2)

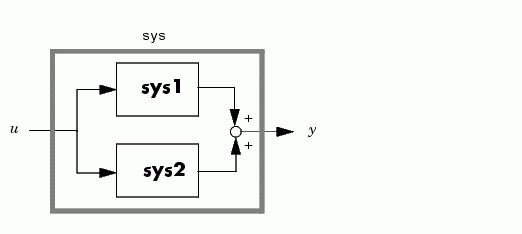

forms the basic parallel connection shown below.
This command is equivalent to the direct addition
(See Addition and Subtraction for details on LTI system addition.)
sys = parallel(sys1,sys2,inp1,inp2,out1,out2)

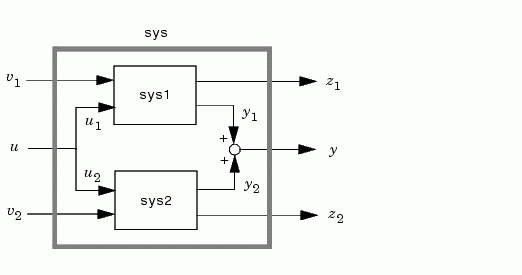

forms the more general parallel connection.
The index vectors inp1 and inp2 specify which inputs
of sys1 and which inputs
of sys2 are connected. Similarly, the index vectors out1 and out2 specify which outputs
of sys1 and which outputs
of sys2 are summed. The resulting model sys has
as inputs and
as outputs.
Example
See Kalman Filtering for an example.
See Also
append Append LTI systems
feedback Feedback connection
series Series connection
