wpcoef

Wavelet packet coefficients

Syntax

• X = wpcoef(T,N)
  X = wpcoef(T)


Description

wpcoef is a one- or two-dimensional wavelet packet analysis function.

X = wpcoef(T,N) returns the coefficients associated with the node N of the wavelet packet tree T. If N doesn't exist, X = [ ];

X = wpcoef(T) is equivalent to X = wpcoef(T,0).

Examples

• % The current extension mode is zero-padding (see dwtmode).

  % Load signal.
  load noisdopp; x = noisdopp;

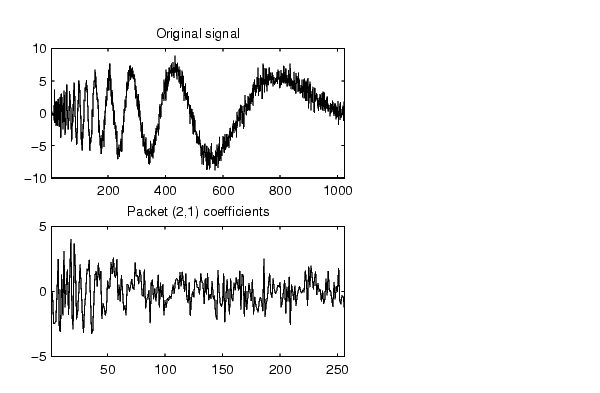

  figure(1); subplot(211);
  plot(x); title('Original signal');

  % Decompose x at depth 3 with db1 wavelet packets
  % using Shannon entropy.
  wpt = wpdec(x,3,'db1');

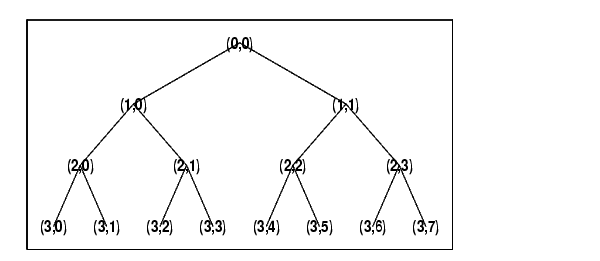

  % Plot wavelet packet tree wpt.
  plot(wpt)


  % Read packet (2,1) coefficients.
  cfs = wpcoef(wpt,[2 1]);

  figure(1); subplot(212);
  plot(cfs); title('Packet (2,1) coefficients');




See Also
wpdec, wpdec2

wpbmpen

wpcutree
