Wavelet Toolbox

ind2depo

Node index to node depth-position

Syntax

• [D,P] = ind2depo(ORD,N)


Description

ind2depo is a tree-management utility.

For a tree of order ORD, [D,P] = ind2depo(ORD,N) computes the depths D and the positions P (at these depths D) for the nodes with indices N.

The nodes are numbered from left to right and from top to bottom. The root index is 0.

N must be a column vector of integers (N 0).

Note that [D,P] = ind2depo(ORD,[D P]).

Examples

• % Create initial tree.
  ord = 2; t = ntree(ord,3);    % Binary tree of depth 3.
  t = nodejoin(t,5);
  t = nodejoin(t,4);

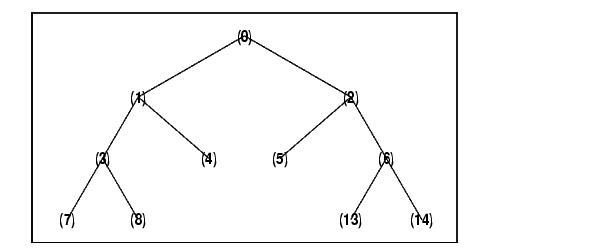

  plot(t)

  % Change Node Label from Depth_Position to Index
  % (see the plot function).


  % List t nodes (index).
  aln_ind = allnodes(t)

  aln_ind =
      0
      1
      2
      3
      4
      5
      6
      7
      8
     13
     14

  % Switch from index to Depth_Position.
  [depth,pos] = ind2depo(ord,aln_ind);
  aln_depo = [depth,pos]

  aln_depo =
      0     0
      1     0
      1     1
      2     0
      2     1
      2     2
      2     3
      3     0
      3     1
      3     6
      3     7
