Statistics Toolbox

rcoplot

Residual case order plot

Syntax

• rcoplot(r,rint)


Description

rcoplot(r,rint) displays an errorbar plot of the confidence intervals on the residuals from a regression. The residuals appear in the plot in case order. Inputs r and rint are outputs from the regress function.

Example

• X = [ones(10,1) (1:10)'];
  y = X * [10;1] + normrnd(0,0.1,10,1);
  [b,bint,r,rint] = regress(y,X,0.05);
  rcoplot(r,rint);

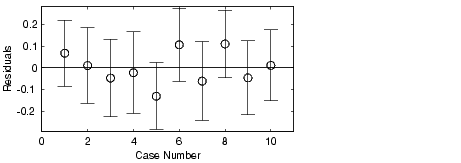

The figure shows a plot of the residuals with error bars showing 95% confidence intervals on the residuals. All the error bars pass through the zero line, indicating that there are no outliers in the data.

See Also
regress

raylstat

refcurve
