Define Simulink Parameters

  1. Double-click the Sine Wave block and edit the parameters as shown in this partial dialog box example.

  1. Select OK to apply the changes and close the dialog box.

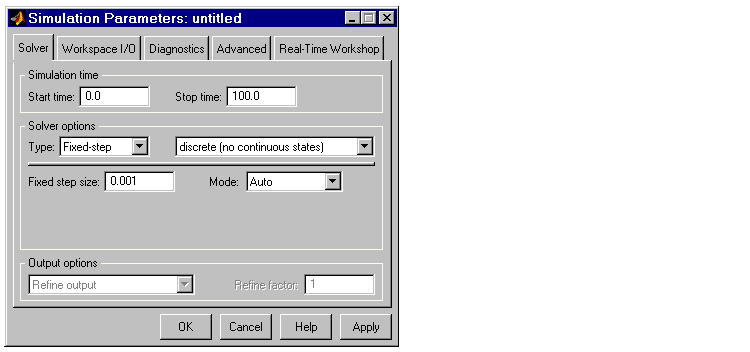

  1. Choose Simulation Parameters from the Simulation menu of the Simulink model window and edit the values to match the values in this dialog box.

  1. Select OK to apply the changes and close the dialog box.

  1. Select Save from the File menu to save the model.
