Define the Stateflow Interface

Make connections in the Simulink model between other blocks and the Stateflow block:

  1. Enter simulink in the MATLAB Command Window to invoke Simulink.
  2. Add a Sine Wave block (located in the Simulink Sources block library) and connect it to the input trigger port of the Stateflow block.
  3. Add a Scope block (located in the Simulink Sinks block library) and connect it to the Sine Wave block output as well.

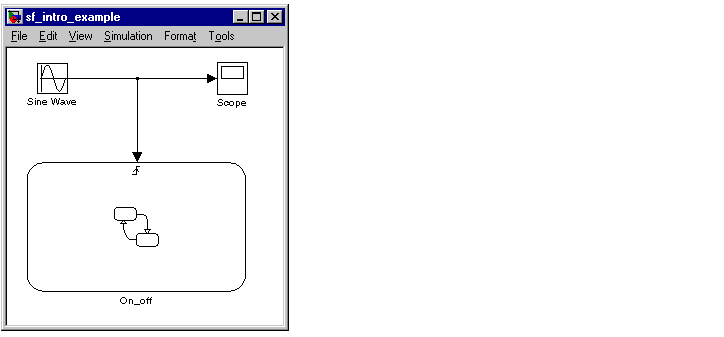

  1. Your model should look similar to this.
