Changing Transition Properties

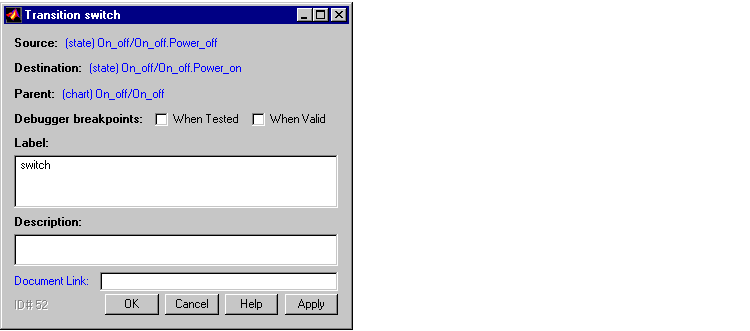

Select a transition and right-click its border to display the Transition shortcut menu. Choose Properties to display the Transition properties dialog box.

This table lists and describes the transition object fields.

Field	Description
Source	Source of the transition; read-only; click the hypertext link to bring the transition source to the foreground.
Destination	Destination of the transition; read-only; click the hypertext link to bring the transition destination to the foreground.
Parent	Parent of this state; read-only; click the hypertext link to bring the parent to the foreground.
Debugger breakpoints	Select the check boxes to set debugging breakpoints either when the transition is tested for validity or when it is valid.
Label	The transition's label. See Transition Label Notation for more information on valid label formats.
Description	Textual description/comment.
Document Link	Enter a Web URL address or a general MATLAB command. Examples are www.mathworks.com, mailto:email_address, and edit/spec/data/speed.txt.

Click Apply to save the changes. Click OK to save the changes and close the dialog box. Click Cancel to close the dialog without applying any changes made since the last time you clicked Apply. Click Help to display the Stateflow online help in an HTML browser window.
