Open-Loop Nichols Plot

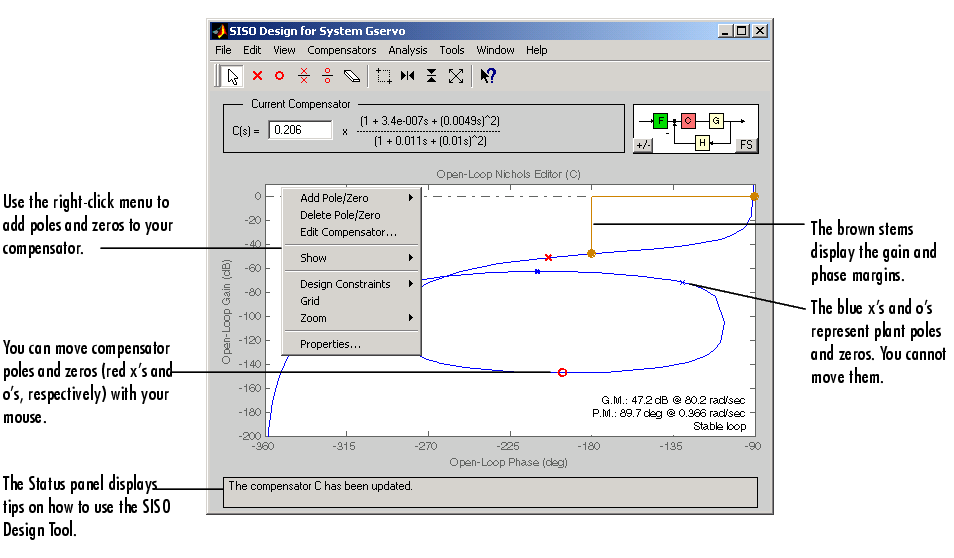

An alternative method for compensator design is the open-loop Nichols plot. You can use the right-click menu and interactive graphics features to add, adjust, and remove compensator dynamics. This figure shows some of the features of the open-loop Nichols plot.
See Nichols Plot Design in Getting Started with the Control System Toolbox for an example of how to use Nichols plot design techniques.
