Open-Loop Bode Diagram

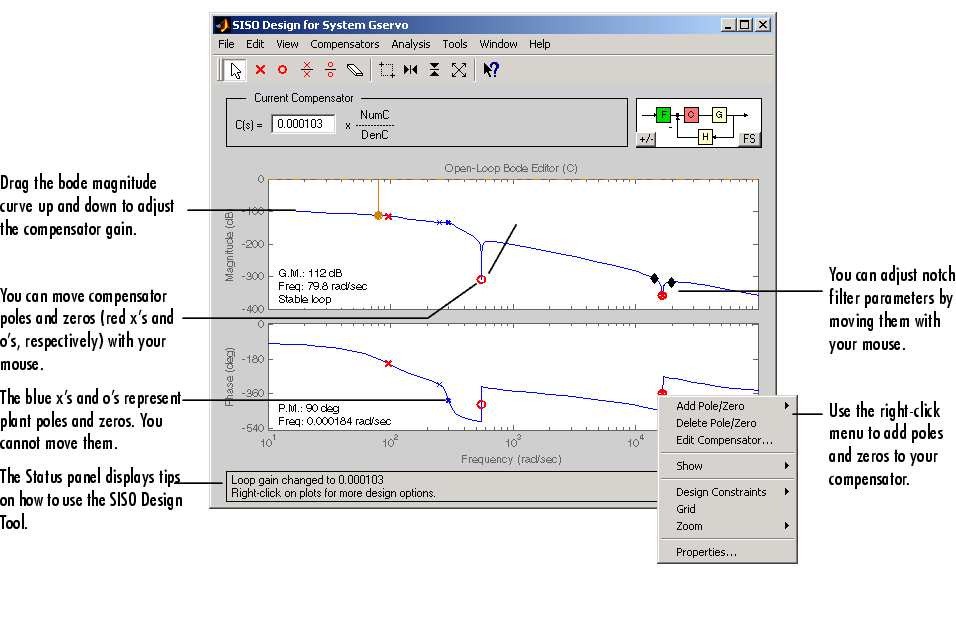

The SISO Design Tool supports the open-loop Bode diagram view of your system. You can use the right-click menu and interactive graphics features to add, adjust, and remove compensator dynamics. This figure shows some of the features of the open-loop Bode diagram.

See Bode Diagram Design in Getting Started with the Control System Toolbox for an example of how to use Bode diagram design techniques.
