Feedback and Other Interconnection Functions
The following LTI model interconnection functions are useful for specifying closed- and open-loop model configurations:
feedback
puts two LTI models with compatible dimensions in a feedback configuration.
series
connects two LTI models in series.
parallel
connects two LTI models in parallel.
lft
performs the Redheffer star product on two LTI models.
connect
works with append
to apply an arbitrary interconnection scheme to a set of LTI models.

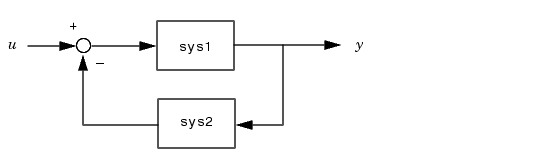

For example, if sys1 has m inputs and p outputs, while sys2 has p inputs and m outputs, then the negative feedback configuration of these two LTI models
This specifies the LTI model with m inputs and p outputs whose I/O map is
See the reference pages online for more information on feedback
, series
, parallel
, lft
, and connect
.
