In most cases, MATLAB crops the background tightly around the objects in the figure. Depending on the printer driver or file format you use, you may able to produce uncropped output. An uncropped figure has increased background area and is often desirable for figures that contain UI controls.
The setting you make in MATLAB changes the PostScript BoundingBox property saved with the figure.

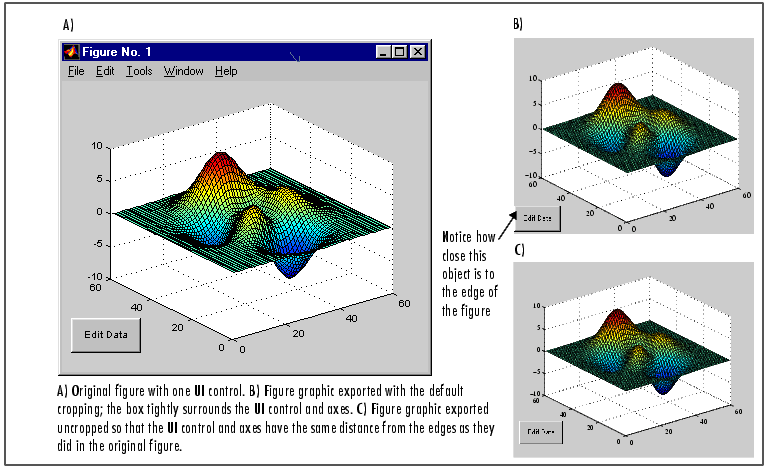

The figure below compares cropped and uncropped output from the same figure.
Figure 3-4: Figure Exported to EPS With and Without a Cropping
| Note The figures shown were exported with a colored background color. If they were exported with a white background (the default), the crop setting might not be evident |
