Customization

Customizing Plots Inside the SISO Design Tool

Customizing plots inside the SISO Design Tool is similar to how you customize any response plot. The Control System Toolbox provides the following property editors specific to the SISO Design Tool:

• Root Locus Property Editor
• Open-Loop Bode Property Editor
• Open-Loop Nichols Property Editor
• Prefilter Bode Property Editor

You can use each of these property editors to create the customized plots within the SISO Design tool.

Root Locus Property Editor

There are three ways to open the Property Editor for root locus plots:

• Double-click in the root locus away from the curve
• Select Properties from the right-click menu
• Select Root Locus and then Properties from Edit in the menu bar

Note    Click on the page tabs below to get help on pages in the Root Locus Property Editor.

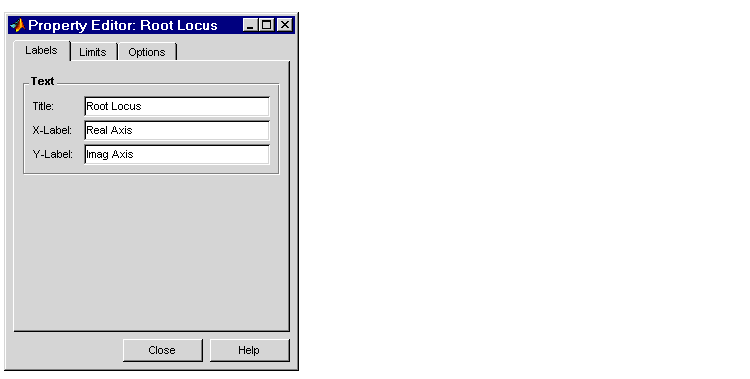

This figure shows the Property Editor: Root Locus window.

Property Editing for Subplots

Labels Page
