Adding a Compensator Gain
The simplest compensator is just a gain, so try the root locus technique to select an appropriate feedback gain.

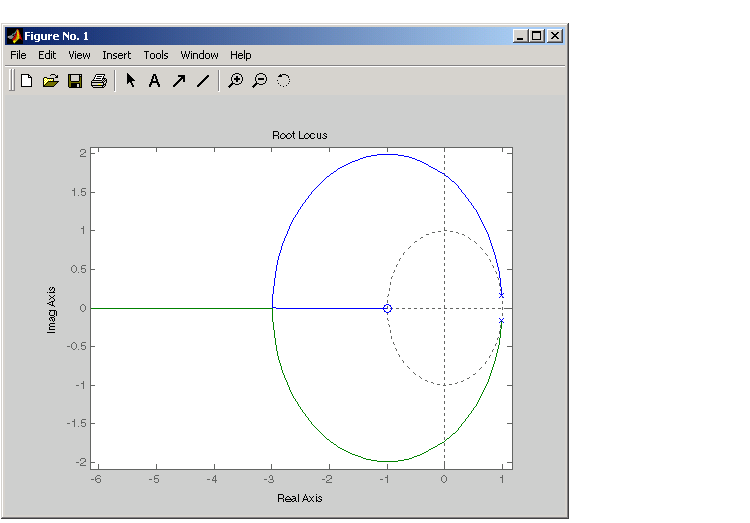

As shown in the root locus, the poles quickly leave the unit circle and go unstable. You need to introduce some lead or a compensator with some zeros.
