Characteristics

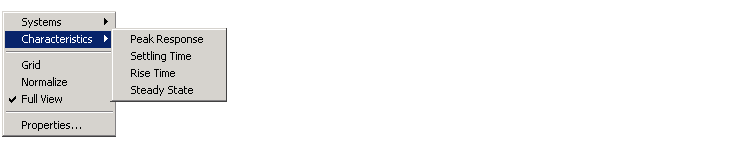

The Characteristics menu changes for each plot response type. This picture shows the options for a step response.
The following table lists the characteristics available for each response plot type.
Function |
Characteristics |
bode |
Peak Response |
bodemag |
Peak Response |
impulse |
Peak Response Settling Time |
initial |
Peak Response |
nichols |
Peak Response |
nyquist |
Peak Response |
pzmap |
None |
sigma |
Peak Response |
step |
Peak Response Settling Time Rise Time Steady State |
You can find definitions for these characteristics in Characteristics.
