On-Balance Volume (OBV)
On-Balance Volume (OBV) relates volume to price change. The function onbalvol
requires you to have the closing price (Close
) series as well as the volume traded (Volume
) series.
Calculate and plot the OBV for IBM along with the price range using these commands:
obv_ibm = onbalvol(part_ibm); subplot(2, 1, 1); plot(obv_ibm); title('On-Balance Volume of IBM Stock, 10/01/95-12/31/95'); datetick('x', 'mm/dd/yy'); subplot(2, 1, 2); highlow(part_ibm); title('IBM Stock Prices, 10/01/95-12/31/95'); datetick('x', 'mm/dd/yy');

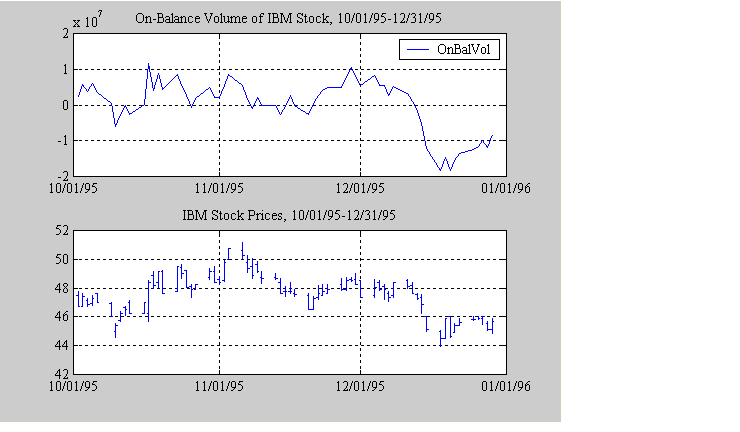

Figure 3-4, On-Balance Volume (OBV) and IBM Stock Prices shows the result.
Figure 3-4: On-Balance Volume (OBV) and IBM Stock Prices
