If (Simulink Reference)

Implement a C-like if-else control flow statement in Simulink

Library

Ports & Subsystems

Description

The If block, along with If Action subsystems containing Action Port blocks, implements standard C-like if-else logic.

The following shows a completed if-else control flow statement.

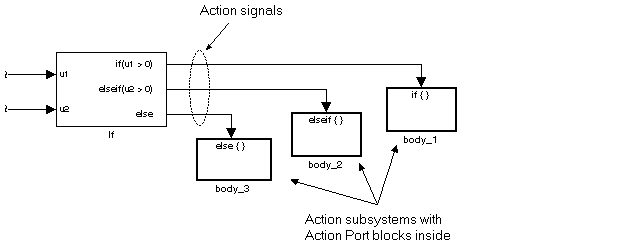

In this example, the inputs to the If block determine the values of conditions represented as output ports. Each output port is attached to an If Action subsystem. The conditions are evaluated top down starting with the if condition. If a condition is true, its If Action subsystem is executed and the If block does not evaluate any remaining conditions.

The preceding if-else control flow statement can be represented by the following pseudocode.

if (u1 > 0) {
    body_1;
}
elseif (u2 > 0){
    body_2;
}
else {
    body_3;
}

You construct a Simulink if-else control flow statement like the preceding example as follows:

Place an If block in the current system.
Open the Block Parameters dialog of the If block and enter as follows:

Enter the Number of inputs field with the required number of inputs necessary to define conditions for the if-else control flow statement.

Elements of vector inputs can be accessed for conditions using (row, column) arguments. For example, you can specify the fifth element of the vector u2 in the condition u2(5) > 0 in an If expression or Elseif expressions field.

Enter the expression for the if condition of the if-else control flow statement in the If expression field.

This creates an if output port for the If block with a label of the form if(condition). This is the only required If Action signal output for an If block.

Enter expressions for any elseif conditions of the if-else control flow statement in the Elseif expressions field.

Use a comma to separate one condition from another. Entering these conditions creates an output port for the If block for each condition, with a label of the form elseif(condition). elseif ports are optional and not required for operation of the If block.

Check the Show else condition check box to create an else output port.

The else port is optional and not required for the operation of the If block.

Create If Action subsystems to connect to each of the if, else, and elseif ports.

These consist of a subsystem with an Action Port block. When you place an Action Port block inside each subsystem, an input port named Action is added to the subsystem.

Connect each if, else, and elseif port of the If block to the Action port of an If Action subsystem.

When you make the connection, the icon for the If Action block is renamed to the type of the condition that it attaches to.

Note During simulation of an if-else control flow statement, the Action signal lines from the If block to the If Action subsystems turn from solid to dashed.

In each If Action subsystem, enter the Simulink blocks appropriate to the body to be executed for the condition it handles.

In the preceding example, this is shown as body_1, body_2, and body_3.

Data Type Support

Inputs u1,u2,...,un can be scalar or vector of any data type, including fixed-point data types, except int64 and uint64.

Outputs from the if, else, and elseif ports are Action signals to If Action subsystems that are created with Action Port blocks and subsystems. See Action Port.

Parameters and Dialog Box

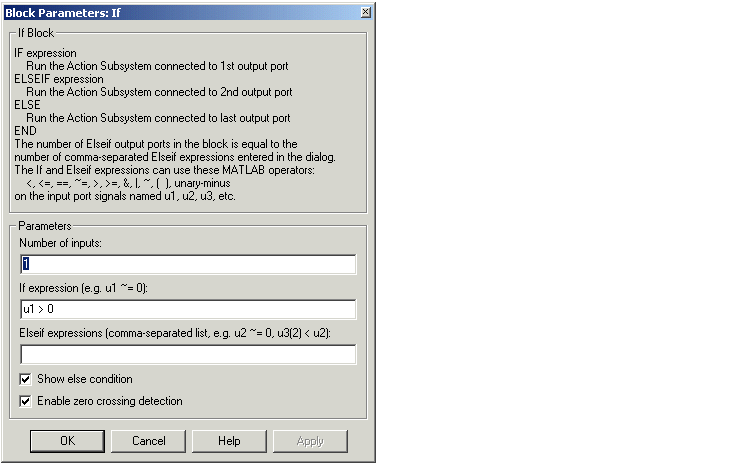

Number of inputs: The number of inputs to the If block. These appear as data input ports labeled with a 'u' character followed by a number, 1,2,...,n, where n equals the number of inputs that you specify.
If expression: The condition for the if output port. This condition appears on the If block adjacent to the if output port. The if expression can use any of the following operators: <. <=, ==, ~=, >, >=, &, |, ~, (), unary-minus. The If Action subsystem attached to the if port executes if its condition is true.
Elseif expressions: A string list of elseif conditions delimited by commas. These conditions appear below the if port and above the else port if the Show else condition check box is selected. elseif expressions can use any of the following operators: <. <=, ==, ~=, >, >=, &, |, ~, (), unary-minus. The If Action subsystem attached to an elseif port executes if its condition is true and all of the if and elseif conditions are false.
Show else condition: If this box is selected, an else port is created. The If Action subsystem attached to the else port executes if the if port and all the elseif ports are false.
Enable zero crossing detection: Select to enable zero crossing detection. For more information, see Zero Crossing Detection in the Using Simulink documentation.

Characteristics

Direct Feedthrough
Yes

Sample Time
Inherited from driving block

Scalar Expansion
No

Dimensionalized
Yes

Direct Feedthrough	Yes
Sample Time	Inherited from driving block
Scalar Expansion	No
Dimensionalized	Yes
