Realize Model Panel

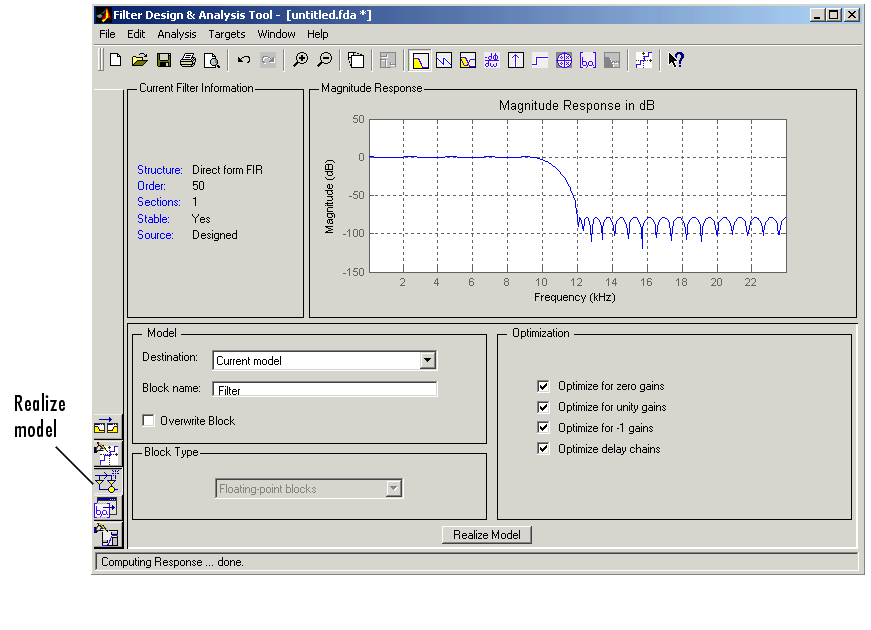

If you have the DSP Blockset installed, a Realize Model sidebar button is shown. Click this button to display the panel where you can define a Simulink block containing your filter.

For more information, see Filter Realization Wizard in the DSP Blockset documentation.

Realize Model Button

Click this button to insert the block into the current or a new Simulink model.
