I/O Selector

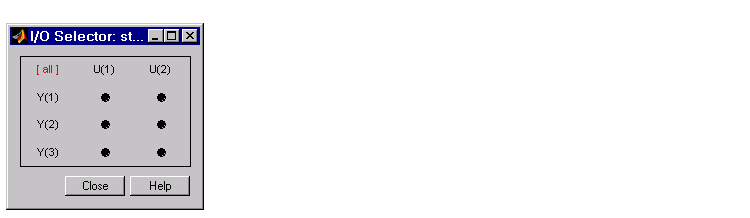

I/O Selector opens the I/O Selector window, shown below.

The I/O Selector window contains buttons corresponding to each I/O pair. In this example, there are 2 inputs and 3 outputs, so there are six buttons. By default, all the I/O pairs are selected. If you click on a button, that I/O pair alone is displayed in the LTI Viewer. The other buttons automatically deselect.

To select a column of inputs, click on the input name above the column. The names are U(1), U(2), and so on. The LTI Viewer displays the responses from the specified input to all the outputs.

To select a row of output, click on the output name to the left of the row. The names are Y(1), Y(2), and so on. The LTI Viewer displays the responses from all the inputs to the specified output.

To reestablish the default setting, click [all]. The LTI Viewer displays all the
I/O pairs.
