Parameters Page
Note
Click on the page tabs below to get help on LTI Viewer Preference editor pages.
|

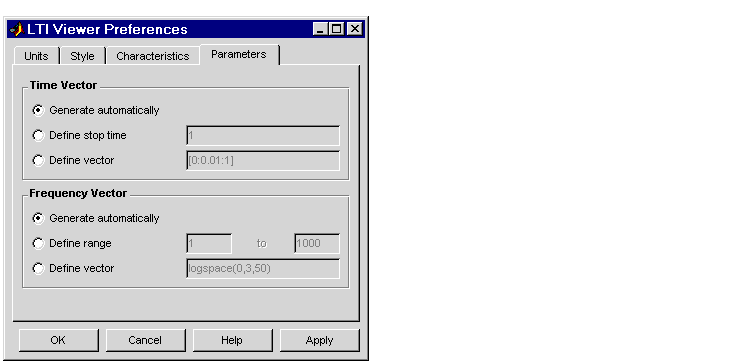

Use the Parameters page, shown below, to specify input vectors for time and frequency simulation.
The defaults are to generate time and frequency vectors for your plots automatically. You can, however, override the defaults as follows:
- Time Vector:
- Define stop time -- Specify the final time value for your simulation
- Define vector -- Specify the time vector manually using equal-sized time steps
- Frequency Vector:
- Define range -- Specify the bandwidth of your response. Whether it's in rad/sec or Hz depends on the selection you made in the Units page.
- Define vector -- Specify the vector for your frequency values. Any real, positive, strictly monotonically increasing vector is valid.
