Resampling of Discrete-Time Models

You can resample a discrete-time TF, SS, or ZPK model sys1 by typing

• sys2 = d2d(sys1,Ts)


The new sampling period Ts does not have to be an integer multiple of the original sampling period. For example, typing

• h1 = tf([1 0.4],[1 -0.7],0.1);
  h2 = d2d(h1,0.25);


resamples h1 at the sampling period of 0.25 seconds, rather than 0.1 seconds.

You can compare the step responses of h1 and h2 by typing

• step(h1,'--',h2,'-')

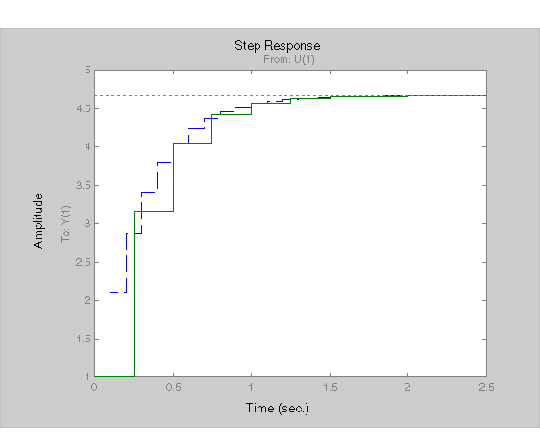

The resulting plot is shown on the figure below (h1 is the dashed line).
