Wavelet Toolbox

wnoise

Generate noisy wavelet test data

Syntax

• X = wnoise(FUN,N)
  [X,XN] = wnoise(FUN,N,SQRT_SNR)
  [X,XN] = wnoise(FUN,N,SQRT_SNR,INIT)


Description

X = wnoise(FUN,N) returns values of the test signal given by FUN, on a 2^N grid of [0,1].

[X,XN] = wnoise(FUN,N,SQRT_SNR) returns a test vector X as above, rescaled such that std(X) = SQRT_SNR. The returned vector XN contains the same test vector corrupted by additive Gaussian white noise N(0,1). Then, XN has a signal-to-noise ratio of SNR = (SQRT_SNR)².

[X,XN] = wnoise(FUN,N,SQRT_SNR,INIT) returns previous vectors X and XN, but the generator seed is set to INIT value.

The six functions below are due to Donoho and Johnstone (See "References").

FUN = 1     or	'blocks'
FUN = 2     or	'bumps'
FUN = 3     or	'heavy sine'
FUN = 4     or	'doppler'
FUN = 5     or	'quadchirp'
FUN = 6     or	'mishmash'

Examples

• % Generate 2^10 samples of 'Heavy sine' (item 3).
  x = wnoise(3,10);

  % Generate 2^10 samples of 'Doppler' (item 4) and of
  % noisy 'Doppler' with a square root of signal-to-noise
  % ratio equal to 7.
  [x,noisyx] = wnoise(4,10,7);

  % To introduce your own rand seed, a fourth
  % argument is allowed:
  init = 2055415866;
  [x,noisyx] = wnoise(4,10,7,init);

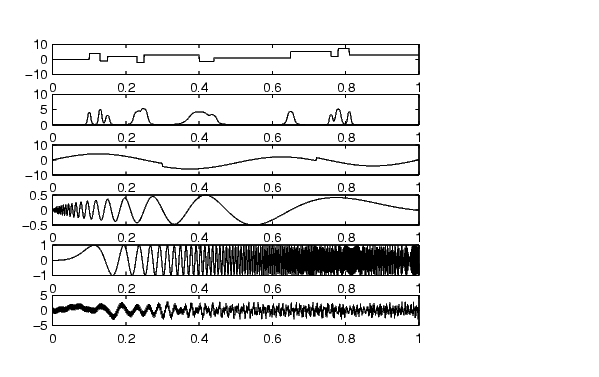

  % Plot all the test functions.
  ind = linspace(0,1,2^10);
  for i = 1:6
      x = wnoise(i,10);
      subplot(6,1,i), plot(ind,x)
  end

  % Editing some graphical properties,
  % the following figure is generated.




See Also
wden

References

Donoho, D.L.; I.M. Johnstone (1994), "Ideal spatial adaptation by wavelet shrinkage," Biometrika, vol 81, pp. 425-455.

Donoho, D.L.; I.M. Johnstone (1995), "Adapting to unknown smoothness via wavelet shrinkage via wavelet shrinkage," JASA, vol 90, 432, pp. 1200-1224.
