Single-level inverse discrete 1-D wavelet transform

**Syntax **

X = idwt(cA,cD,'

*wname*`'`

) X = idwt(cA,cD,Lo_R,Hi_R) X = idwt(cA,cD,'*wname*`'`

,L) X = idwt(cA,cD,Lo_R,Hi_R,L) X = idwt(...`,`

'`mode`

'`,MODE`

)

**Description **

The `idwt`

command performs a single-level one-dimensional wavelet reconstruction with respect to either a particular wavelet ('

', see *wname*`wfilters`

for more information) or particular wavelet reconstruction filters (`Lo_R`

and `Hi_R`

) that you specify.

`X = idwt(cA,cD,`

'*wname*`')`

returns the single-level reconstructed approximation coefficients vector `X`

based on approximation and detail coefficients vectors `cA`

and `cD`

, and using the wavelet '*wname*`'`

.

`X = idwt(cA,cD,Lo_R,Hi_R) `

reconstructs as above using filters that you specify.

`Lo_R`

and `Hi_R`

must be the same length.

Let `la`

be the length of `cA`

(which also equals the length of `cD`

) and `lf`

the length of the filters `Lo`

_R and `Hi`

_R; then `length(X) = LX`

where `LX = 2*la `

if the DWT extension mode set to periodization. For the other extension modes` LX = 2*la-lf+2`

.

For more information about the different Discrete Wavelet Transform extension modes, see `dwtmode`

.

`X = idwt(cA,cD,`

'*wname*`',L)`

or `X = idwt(cA,cD,Lo_R,Hi_R,L)`

returns the length-`L`

central portion of the result obtained using `idwt(cA,cD,`

'*wname*`')`

. `L `

must be less than `LX`

.

`X = idwt(`

...`,`

'*mode*`',MODE)`

computes the wavelet reconstruction using the specified extension mode `MODE`

.

`X = idwt(cA,[],`

...`)`

returns the single-level reconstructed approximation coefficients vector `X`

based on approximation coefficients vector `cA`

.

`X = idwt([],cD,`

...`)`

returns the single-level reconstructed detail coefficients vector `X`

based on detail coefficients vector `cD`

.

`idwt`

is the inverse function of `dwt`

in the sense that the abstract statement `idwt(dwt(X,`

'*wname*`'),`

'*wname*`')`

would give back `X`

.

**Examples**

% The current extension mode is zero-padding (see

`dwtmode`

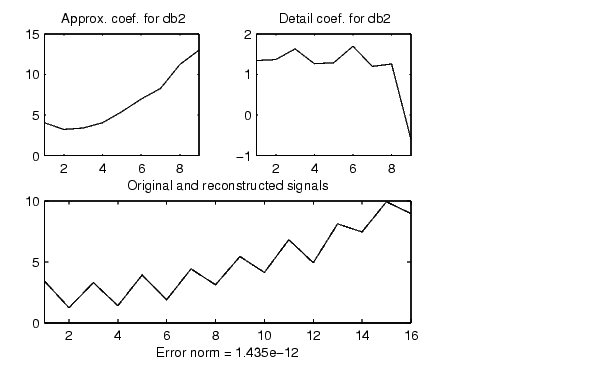

). % Construct elementary one-dimensional signal s. randn('seed',531316785) s = 2 + kron(ones(1,8),[1 -1]) + ... ((1:16).^2)/32 + 0.2*randn(1,16); % Perform single-level dwt of s using db2. [ca1,cd1] = dwt(s,'db2'); subplot(221); plot(ca1); title('Approx. coef. for db2'); subplot(222); plot(cd1); title('Detail coef. for db2'); % Perform single-level inverse discrete wavelet transform, % illustrating that idwt is the inverse function of dwt. ss = idwt(ca1,cd1,'db2'); err = norm(s-ss); % Check reconstruction. subplot(212); plot([s;ss]'); title('Original and reconstructed signals'); xlabel(['Error norm = ',num2str(err)]) % For a given wavelet, compute the two associated % reconstruction filters and inverse transform using % the filters directly. [Lo_R,Hi_R] = wfilters('db2','r'); ss = idwt(ca1,cd1,Lo_R,Hi_R); % Using some plotting commands, % the following figure is generated.

**Algorithm**

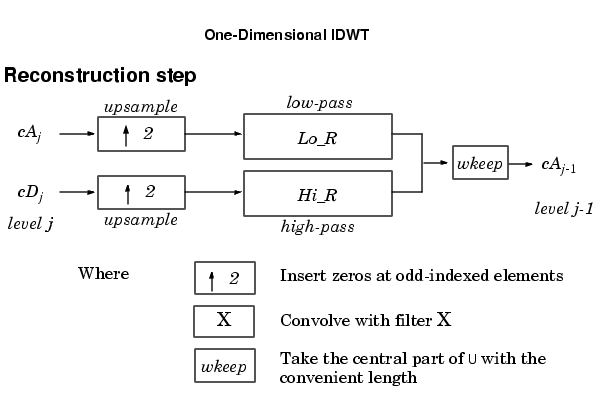

Starting from the approximation and detail coefficients at level *j*, *cA*_{j} and *cD*_{j}, the inverse discrete wavelet transform reconstructs *cA*_{j-1}, inverting the decomposition step by inserting zeros and convolving the results with the reconstruction filters.

**References **

Daubechies, I. (1992), *Ten lectures on wavelets*, CBMS-NSF conference series in applied mathematics. SIAM Ed.

Mallat, S. (1989), "A theory for multiresolution signal decomposition: the wavelet representation," *IEEE Pattern Anal. and Machine Intell.*, vol. 11, no. 7, pp. 674-693.

Meyer, Y. (1990), *Ondelettes et opérateurs*, Tome 1, Hermann Ed. (English translation: *Wavelets and operators*, Cambridge Univ. Press. 1993.)
