dwt2

Single-level discrete 2-D wavelet transform

Syntax

• ```[cA,cH,cV,cD] = dwt2(X,'`wname`')
[cA,cH,cV,cD] = dwt2(X,Lo_D,Hi_D)
```

Description

The `dwt2` command performs a single-level two-dimensional wavelet decomposition with respect to either a particular wavelet ('`wname`', see `wfilters`` `for more information) or particular wavelet decomposition filters (`Lo_D` and `Hi_D`) you specify.

`[cA,cH,cV,cD] = dwt2(X,`'`wname`'`)` computes the approximation coefficients matrix `cA` and details coefficients matrices `cH`, `cV`, and `cD` (horizontal, vertical, and diagonal, respectively), obtained by wavelet decomposition of the input matrix `X`. The '`wname`' string contains the wavelet name.

`[cA,cH,cV,cD] = dwt2(X,Lo_D,Hi_D)` computes the two-dimensional wavelet decomposition as above, based on wavelet decomposition filters that you specify.

• `Lo_D` is the decomposition low-pass filter.
• `Hi_D` is the decomposition high-pass filter.

`Lo_D` and `Hi_D` must be the same length.

Let `sx = size(X)` and `lf = `the length of filters; then `size(cA) = size(cH) = size(cV) = size(cD) = sa` where `sa = ceil(sx/2)`,` `if the DWT extension mode is set to periodization.` `For the other extension modes, `sa = floor((sx+lf-1)/2).`

For information about the different Discrete Wavelet Transform extension modes, see `dwtmode`.

`[cA,cH,cV,cD] = dwt2(...,`'`mode`'`,MODE)` computes the wavelet decomposition with the extension mode `MODE` that you specify.

`MODE` is a string containing the desired extension mode.

An example of valid use is

• ````[cA,cH,cV,cD] = dwt2(x,`'`db1`'`,`'`mode`'`,`'`sym`'```);
``````

Examples

• ```% The current extension mode is zero-padding (see `dwtmode`).

% X contains the loaded image.
% map contains the loaded colormap.
nbcol = size(map,1);

% Perform single-level decomposition
% of X using db1.
[cA1,cH1,cV1,cD1] = dwt2(X,'db1');

% Images coding.
cod_X = wcodemat(X,nbcol);
cod_cA1 = wcodemat(cA1,nbcol);
cod_cH1 = wcodemat(cH1,nbcol);
cod_cV1 = wcodemat(cV1,nbcol);
cod_cD1 = wcodemat(cD1,nbcol);
dec2d = [...
cod_cA1,     cod_cH1;     ...
cod_cV1,     cod_cD1      ...
];

% Using some plotting commands,

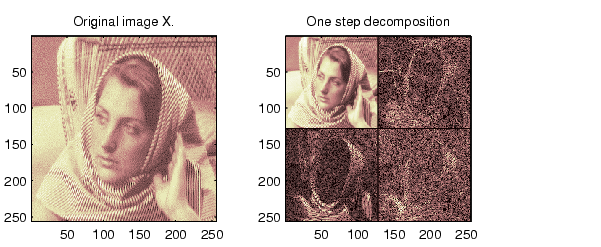

% the following figure is generated.

```

Algorithm

For images, there exist an algorithm similar to the one-dimensional case for two-dimensional wavelets and scaling functions obtained from one- dimensional ones by tensorial product.

This kind of two-dimensional DWT leads to a decomposition of approximation coefficients at level j in four components: the approximation at level j + 1, and the details in three orientations (horizontal, vertical, and diagonal).

The following chart describes the basic decomposition steps for images:

 Note    To deal with signal-end effects involved by a convolution-based algorithm, a global variable managed by `dwtmode` is used. This variable defines the kind of signal extension mode used. The possible options include zero-padding (used in the previous example) and symmetric extension, which is the default mode.

```dwtmode, idwt2, wavedec2, waveinfo ```
