Transitions to and from Exclusive (OR) States

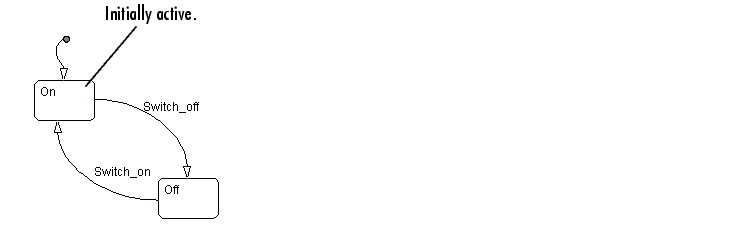

This example shows simple transitions to and from exclusive (OR) states.

The transition OnOff is valid when state On is active and the event Switch_off occurs. The transition OffOn is valid when state Off is active and event Switch_on occurs.

See Transitions to and from Exclusive (OR) States Examples for more information on the semantics of this notation.
