Graphical Objects Example Diagram

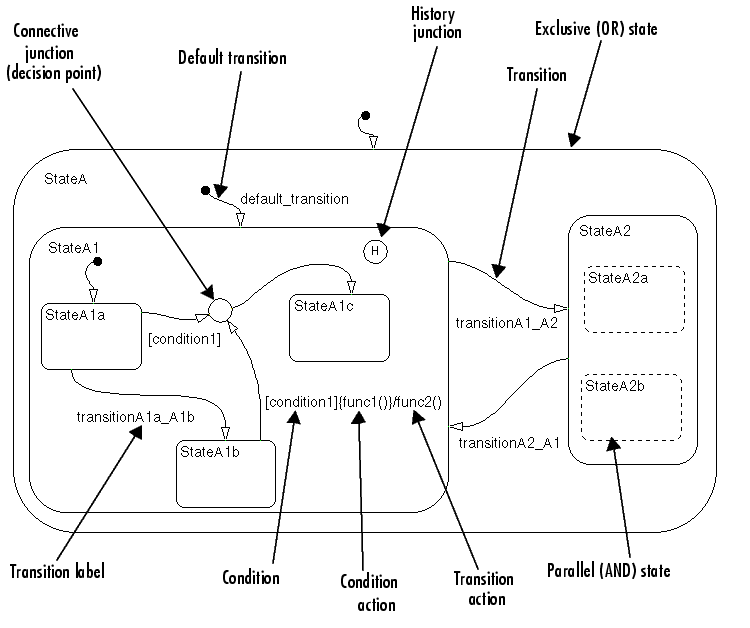

The following sample Stateflow diagram displays the key graphical objects of a Stateflow diagram. These objects are described in following sections that refer to this diagram.

Stateflow Diagram of Graphical Objects
