Navigating Subcharts

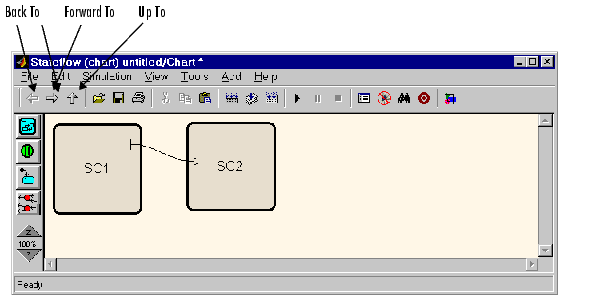

The Stateflow toolbar contains a set of buttons for navigating a chart's subchart hierarchy.

• Up To

• If the Stateflow editor is displaying a subchart, this button replaces the subchart with the subchart's parent in the editor. If the editor is displaying a top-level chart, this button raises the Simulink model window containing that chart.

  The next two buttons allow you to retrace your steps as you navigate up and down a subchart hierarchy.

• Back To

• Returns to the chart that you visited before the current chart.

• Forward To

• Returns to the chart that you visited after visiting the current chart.
