Stateflow

Broadcasting Events

Broadcasting an event in the action language is most useful as a means of synchronization among AND (parallel) states. Recursive event broadcasts can lead to definition of cyclic behavior. Cyclic behavior can be detected only during simulation.

Event Broadcast State Action Example

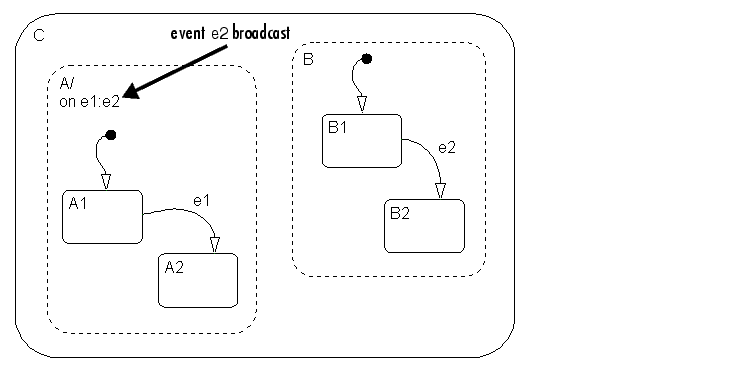

The following is an example of the state action notation for an event broadcast:

See Event Broadcast State Action Example for information on the semantics of this notation.

Event Broadcast Transition Action Example

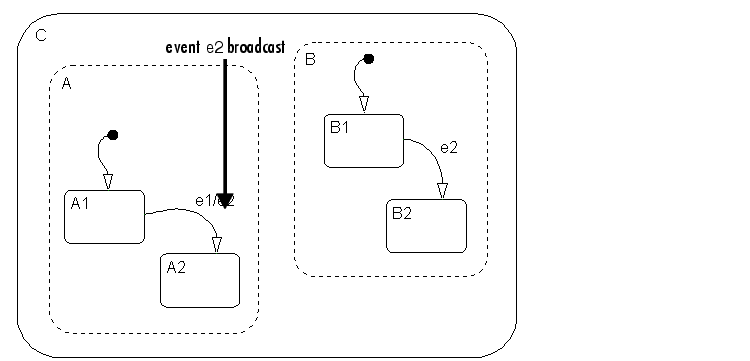

The following is an example of transition action notation for an event broadcast.

See Event Broadcast Transition Action with a Nested Event Broadcast Example for information on the semantics of this notation.
