Merging Model Differences

The Graphical Merge Tool's Merge menu allows you to combine models by merging their differences.

Note    The tool does not merge differences between Stateflow charts in your models.

To merge differences between an item that exists in both models or to add an item that exists only in one model to the other model, first select the item in the tool window. Next, select Copy left object into right from the Merge menu (or enter A) to update the model corresponding to the right pane of the tool window. Or you can select Copy right object into left (or enter B) to update the model corresponding to the left pane.

To delete an item that appears in only one of the two models being compared, first select the item in the Graphical Merge Tool window. Then select Delete from the Merge menu (or press Delete). Simulink deletes the item from the corresponding model and draws a line through the tree entry that represents it in the tool window.

Generating a Model Differences Report

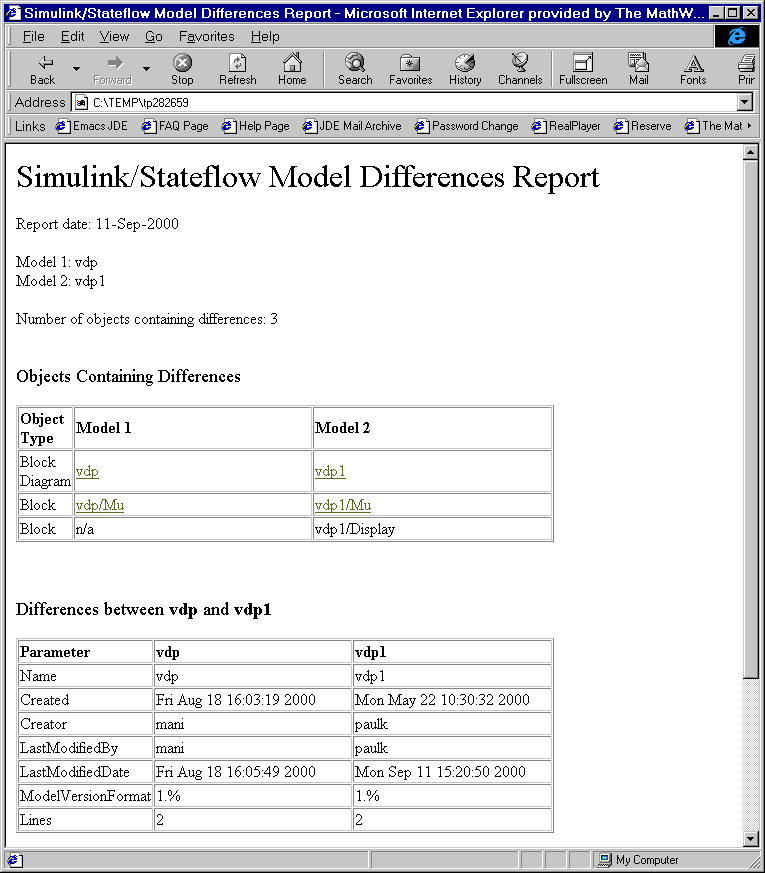

Select HTML Report from the View menu to display an HTML report summarizing the differences between the two models.

The report starts by listing all the blocks that differ between the two models. This summary is followed by difference reports for each block that has different instances in the two models.
