SB2SL Simulink Library

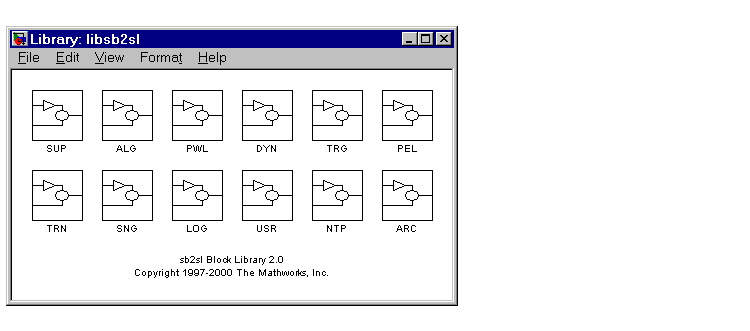

You can find all of the masked blocks generated by SB2SL that are not found in any of the other Simulink libraries in the library libsb2sl.mdl. You can open this library at the MATLAB command line by typing

• libsb2sl


After using SB2SL for translation, some of the blocks appearing in the resulting Simulink model may be from this library.

Open any of the masks of the Simulink blocks in this library to see the exact implementation of each of the SystemBuild equivalents used by SB2SL. For example, the Simulink equivalent to the SystemBuild Ramp block is found in

• libsb2sl/SGN/LimRamp


Using Real-Time Workshop with Converted SB2SL Models

You can use the Real-Time Workshop 4.0 to generate code for models you have converted from SystemBuild to Simulink (using SB2SL). Code is generated for most translated blocks in the model.

The blocks that do not support code generation through the Real-Time Workshop 4.0 are:

• ConditionBlock
• Decoder
• Encoder
• GainScheduler
• Interp Table (Archive library)
• ShiftRegister
