Discrete Fourier Transform

Working with the Fourier transform on a computer usually involves a form of the transform known as the discrete Fourier transform (DFT). There are two principal reasons for using this form:

• The input and output of the DFT are both discrete, which makes it convenient for computer manipulations.
• There is a fast algorithm for computing the DFT known as the fast Fourier transform (FFT).

The DFT is usually defined for a discrete function that is nonzero only over the finite region and . The two-dimensional M-by-N DFT and inverse M-by-N DFT relationships are given by

The values are the DFT coefficients of . The zero-frequency coefficient, is often called the "DC component." DC is an electrical engineering term that stands for direct current. (Note that matrix indices in MATLAB always start at 1 rather than 0; therefore, the matrix elements f(1,1) and F(1,1) correspond to the mathematical quantities and , respectively.)

The MATLAB functions fft, fft2, and fftn implement the fast Fourier transform algorithm for computing the one-dimensional DFT, two-dimensional DFT, and N-dimensional DFT, respectively. The functions ifft, ifft2, and ifftn compute the inverse DFT.

Relationship to the Fourier Transform

The DFT coefficients are samples of the Fourier transform .

Example

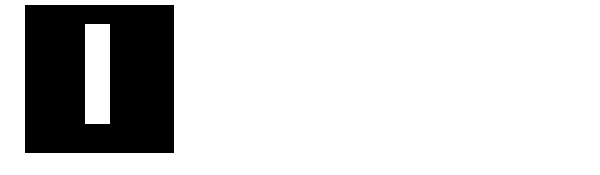

Let's construct a matrix f that is similar to the function f(m,n) in the example in "Definition of Fourier Transform" on page 8-4. Remember that f(m,n) is equal to 1 within the rectangular region and 0 elsewhere. We use a binary image to represent f(m,n).

• f = zeros(30,30);
  f(5:24,13:17) = 1;
  imshow(f,'notruesize')




Compute and visualize the 30-by-30 DFT of f with these commands.

• F = fft2(f);
  F2 = log(abs(F));
  imshow(F2,[-1 5],'notruesize'); colormap(jet); colorbar

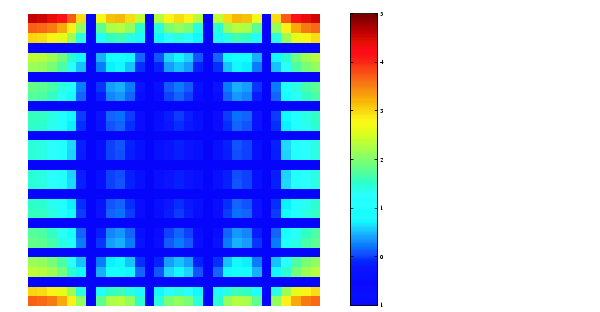

Figure 8-5: A Discrete Fourier Transform Computed Without Padding

This plot differs from the Fourier transform displayed on Figure 8-3. First, the sampling of the Fourier transform is much coarser. Second, the zero-frequency coefficient is displayed in the upper-left corner instead of the traditional location in the center.

We can obtain a finer sampling of the Fourier transform by zero-padding f when computing its DFT. The zero-padding and DFT computation can be performed in a single step with this command.

• F = fft2(f,256,256);


This command zero-pads f to be 256-by-256 before computing the DFT.

• imshow(log(abs(F)),[-1 5]); colormap(jet); colorbar

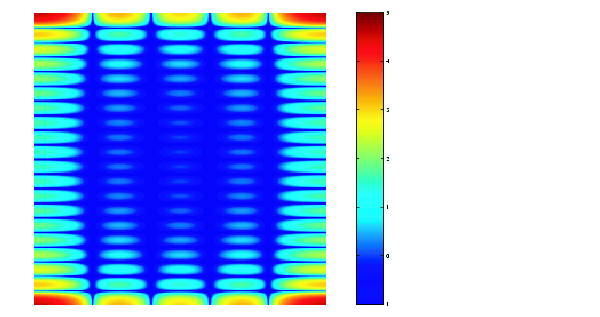

Figure 8-6: A Discrete Fourier Transform Computed with Padding

The zero-frequency coefficient, however, is still displayed in the upper-left corner rather than the center. You can fix this problem by using the function fftshift, which swaps the quadrants of F so that the zero-frequency coefficient is in the center.

• F = fft2(f,256,256);
  F2 = fftshift(F);
  imshow(log(abs(F2)),[-1 5]); colormap(jet); colorbar


The resulting plot is identical to the one on Figure 8-3.
