Pixel Selection

The toolbox includes two functions that provide information about the color data values of image pixels you specify:

To use pixval, you first display an image and then enter the pixval command. pixval installs a black bar at the bottom of the figure, which displays the (x,y) coordinates for whatever pixel the cursor is currently over, and the color data for that pixel.

If you click on the image and hold down the mouse button while you move the cursor, pixval also displays the Euclidean distance between the point you clicked on and the current cursor location. pixval draws a line between these points to indicate the distance being measured. When you release the mouse button, the line and the distance display disappear.

pixval gives you more immediate results than impixel, but impixel has the advantage of returning its results in a variable, and it can be called either interactively or noninteractively. If you call impixel with no input arguments, the cursor changes to a crosshair when it is over the image. You can then click on the pixels of interest; impixel displays a small star over each pixel you select. When you are done selecting pixels, press Return. impixel returns the color values for the selected pixels, and the stars disappear.

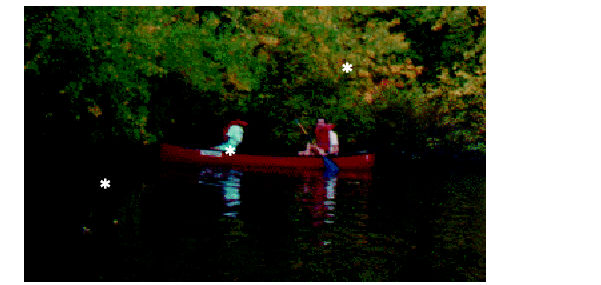

In this example, you call impixel and click on three points in the displayed image, and then press Return.

Notice that the second pixel, which is part of the canoe, is pure red; its green and blue values are both 0.

For indexed images, pixval and impixel both show the RGB values stored in the colormap, not the index values.
