bwarea (Image Processing Toolbox)

Compute the area of the objects in a binary image

Syntax

```
total = bwarea(BW)
```

Description

total = bwarea(BW) estimates the area of the objects in binary image BW. total is a scalar whose value corresponds roughly to the total number of on pixels in the image, but may not be exactly the same because different patterns of pixels are weighted differently.

Class Support

BW can be numeric or logical. For numeric input, any non-zero pixels are considered to be "on". The return value, total, is of class double.

Algorithm

bwarea estimates the area of all of the on pixels in an image by summing the areas of each pixel in the image. The area of an individual pixel is determined by looking at its 2-by-2 neighborhood. There are six different patterns, each representing a different area:

Patterns with zero on pixels (area = 0)
Patterns with one on pixel (area = 1/4)
Patterns with two adjacent on pixels (area = 1/2)
Patterns with two diagonal on pixels (area = 3/4)
Patterns with three on pixels (area = 7/8)
Patterns with all four on pixels (area = 1)

Keep in mind that each pixel is part of four different 2-by-2 neighborhoods. This means, for example, that a single on pixel surrounded by off pixels has a total area of 1.

Example

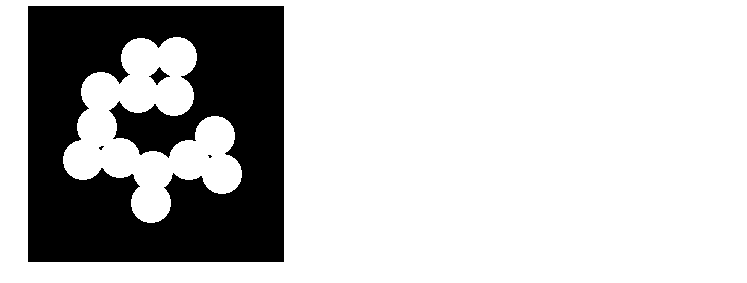

This example computes the area in the objects of a 256-by-256 binary image.

BW = imread('circles.tif');
imshow(BW);


bwarea(BW)

ans =

       15799

See Also

bweuler, bwperim

References

Pratt, William K. Digital Image Processing. New York: John Wiley & Sons, Inc., 1991. p. 634.
