Wrap To Zero (Fixed-Point Blockset)

Set output to zero if input is above threshold

Library

Nonlinear

Description

The Wrap To Zero block sets the output to zero if the input is above the value set by the Threshold parameter, and outputs the input if the input is less than or equal to the Threshold.

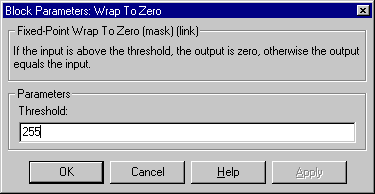

Parameters and Dialog Box

Threshold: When the input exceeds the threshold, the output is set to zero.

Characteristics

Input Port
Any data type supported by the blockset

Output Ports
Same as the input

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Port	Any data type supported by the blockset
Output Ports	Same as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes
