Scaling Strip (Fixed-Point Blockset)

Remove scaling and map to a built in integer

Library

Data Type

Description

The Scaling Strip block strips the scaling off a fixed point signal. It maps the input data type to the smallest built in data type that has enough data bits to hold the input. The stored integer value of the input is the value of the output. The output always has nominal scaling (slope = 1.0 and bias = 0.0), so the output does not make a distinction between real world value and stored integer value.

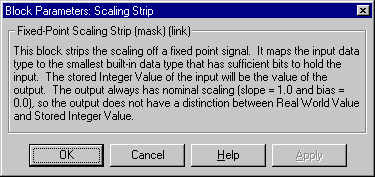

Parameters and Dialog Box

Characteristics

Input Port
Any data type supported by the blockset

Output Port
Same as the input

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Port	Any data type supported by the blockset
Output Port	Same as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes

Saturation Dynamic Shift Arithmetic
