Rate Limiter

Limit the rising and falling rates of the signal

Library

Nonlinear

Description

The Rate Limiter block is a masked block that limits the rising and falling rates of the signal.

Use the Rising slew rate parameter to set the limit on the rising rate of the signal.

Use the Falling slew rate parameter to set the limit on the falling rate of the signal.

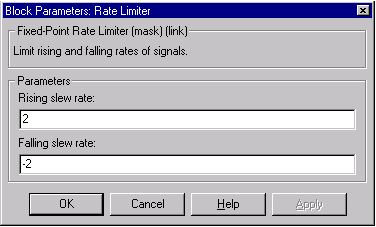

Parameters and Dialog Box

Rising slew rate

Limit on the rising rate of the signal.

Falling slew rate

Limit on the falling rate of the signal.

Characteristics

Input Port	Any data type supported by the blockset
Output Port	Same as the input
Direct Feedthrough	Yes
Scalar Expansion	Yes

See Also

Rate Limiter Dynamic

Product of Elements Inverted

Rate Limiter Dynamic
