MinMax Running Resettable

Determine the minimum or maximum of a signal over time

Library

Math

Description

The MinMax Running Resettable block outputs the minimum or maximum of all past inputs u. You specify whether the block outputs the minimum or the maximum with the Function parameter.

The block can reset its state based on an external reset signal R. When the reset signal R is TRUE, the block resets the output to the value of the Initial condition parameter.

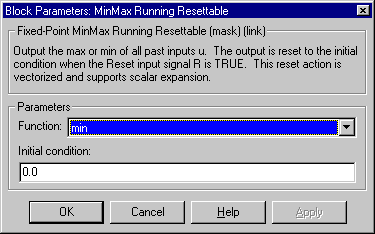

Parameters and Dialog Box

Function
Specify whether the block outputs the minimum or the maximum.
Initial condition
Initial condition.

Characteristics

Input Ports
Any data type supported by the blockset
Output Port
Same data type as the input
Direct Feedthrough
Yes
Scalar Expansion
Yes
