Dot Product (Fixed-Point Blockset)

Generate the dot product

Library

Math

Description

The Dot Product block is a masked S-function that generates the dot product of its two input vectors. The scalar output, y, is equal to the MATLAB operation

```
y = sum(conj(u1).* u2)
```

where u1 and u2 represent the inputs. If both inputs are vectors, they must be the same length.

For a detailed description of all block parameters, refer to Block Parameters. For more information about converting from one Fixed-Point Blockset data type to another, refer to Signal Conversions.

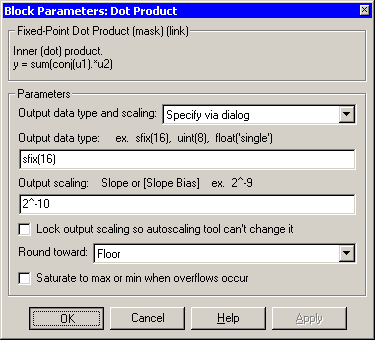

Parameters and Dialog Box

Output data type and scaling: Specify the output data type and scaling via the dialog box, or inherit the data type and scaling from the driving block or by backpropagation.
Output data type: Any data type supported by the Fixed-Point Blockset.
Output scaling: Set the output scaling using radix point-only or [Slope Bias] scaling. These scaling modes are available only for generalized fixed-point data types.
Lock output scaling so autoscaling tool can't change it: If selected, Output scaling is locked. This feature is available only for generalized fixed-point output.
Round toward: Rounding mode for the fixed-point output.
Saturate to max or min when overflows occur: If selected, fixed-point overflows saturate.

Characteristics

Input Ports
Any data type supported by the blockset

Output Port
Any data type supported by the blockset

Direct Feedthrough
Yes

Scalar Expansion
Yes

Input Ports	Any data type supported by the blockset
Output Port	Any data type supported by the blockset
Direct Feedthrough	Yes
Scalar Expansion	Yes
