I/O Grouping

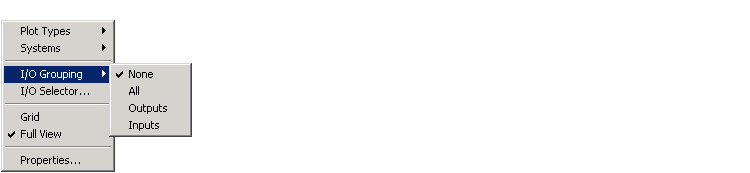

You can uses I/O Grouping to change the grouping of plots in a single plot window. This picture shows the menu options.

There are four options:

• None -- By default, there is no axis grouping. For example, if you display the step responses for a 3-input, 2- output system, there will be six plots in your window.
• All -- Groups all the responses into a single plot
• Inputs -- Groups all the responses by inputs. For example, for a 3-input, 2-output system, selecting Inputs reconfigures the viewer so that there are 3 plots. Each plot contains two curves.
• Outputs -- Groups all the responses by outputs. For example, for a 3-input, 2-output system, selecting Outputs reconfigures the viewer so that there are 2 plots. Each plot contains three curves.
