Characteristics Page
Note
Click on the page tabs below to get help on LTI Viewer Preference editor pages.
|

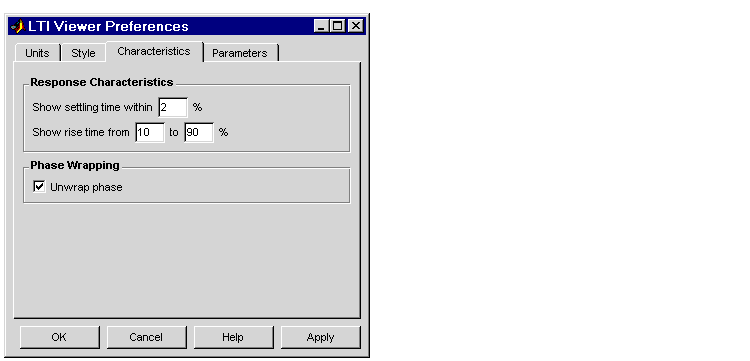

The Characteristics page, shown below, has selections for response characteristics and phase wrapping.
The following choices are available:
- Response Characteristics:
- Specify settling time tolerance -- You can set the threshold of the settling time calculation to any percentage from 0 to 100%. The default is 2%.
- Specify rise time boundaries -- The standard definition of rise time is the time it takes the signal to go from 10% to 90% of the final value. You can choose any percentages you like (from 0% to 100%), provided that the first value is smaller than the second.
- Phase Wrapping -- By default, the phase is not wrapped. Wrap the phrase by unchecking this box. If the phase is wrapped, all phase values are shifted such that their equivalent value displays in the range [-180°, 180°).
