Customization

Customizing Response Plot Properties

The lowest level of The Property and Preferences Hierarchy is setting response plot properties. If you have created a response plot, there are two ways to open the Property Editor:

• Double-click in the plot region
• Select Properties from the right-click menu

Before looking at the Property Editor, open a step response plot using this commands.

• load ltiexamples
  step(sys_dc)


This creates a step plot. Select Properties from the right-click window. Note that when you open the Property Editor, a black dashed box appears around the step response, as this figure shows

.

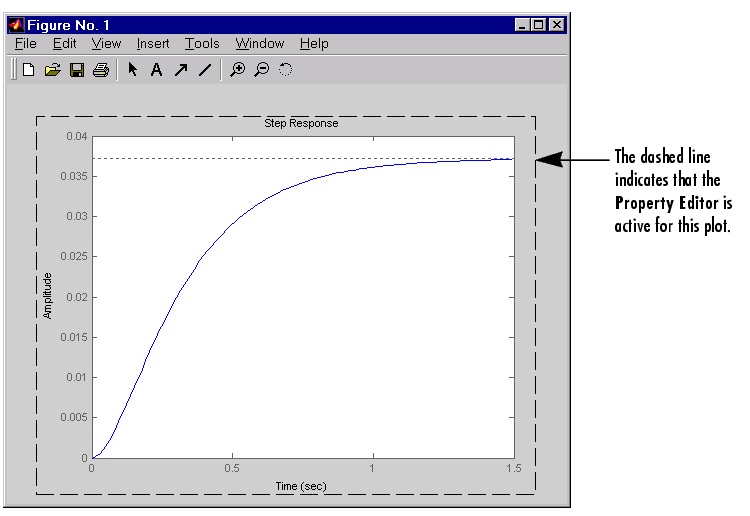

A SISO System Step Response

Line Colors Page

Response Plots Property Editor
