Customizing Response Plot Properties (Customization)

Customization

Units Page

Note Click on the page tabs below to get help on pages in the Property Editor.

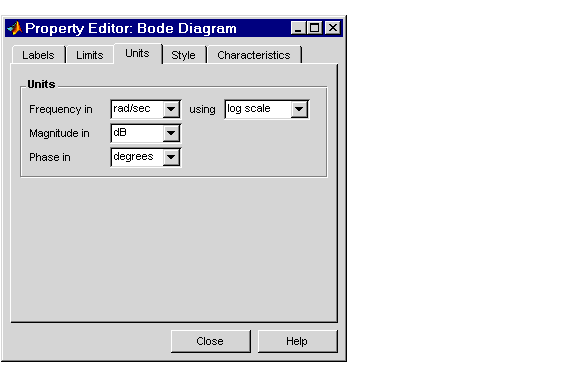

You can use the units page to change units in your response plot. The contents of this page depend on the response plot associated with the editor.

Note that for step and impulse responses, there are no alternate units available (only time and amplitude are possible in the toolbox). This table lists the options available for the other response objects. Use the menus to toggle between units.

Table 3-1: Optional Unit Conversions for Response Plots
Response Plot
Unit Conversions

Bode and
Bode Magnitude
Frequency in rad/sec or Hertz (Hz) using logarithmic or linear scale
Magnitude in decibels (dB) or the absolute value
Phase in degrees or radians

Impulse
None

Nichols Chart and Nyquist Diagram
Frequency in rad/sec or Hertz
Magnitude in decibels or the absolute value
Phase in degrees or radians

Pole/Zero Map
Frequency in rad/sec or Hertz

Singular Values
Frequency in rad/sec or Hertz using logarithmic or linear scale
Magnitude in decibels or the absolute value

Step
None

Table 3-1: **Optional Unit Conversions for Response Plots**
Response Plot	Unit Conversions
Bode and Bode Magnitude	Frequency in rad/sec or Hertz (Hz) using logarithmic or linear scale Magnitude in decibels (dB) or the absolute value Phase in degrees or radians
Impulse	None
Nichols Chart and Nyquist Diagram	Frequency in rad/sec or Hertz Magnitude in decibels or the absolute value Phase in degrees or radians
Pole/Zero Map	Frequency in rad/sec or Hertz
Singular Values	Frequency in rad/sec or Hertz using logarithmic or linear scale Magnitude in decibels or the absolute value
Step	None

Limits Page Style Page
