Limits Page

Note    Click on the page tabs below to get help on pages in the Open-Loop Nichols Property Editor.

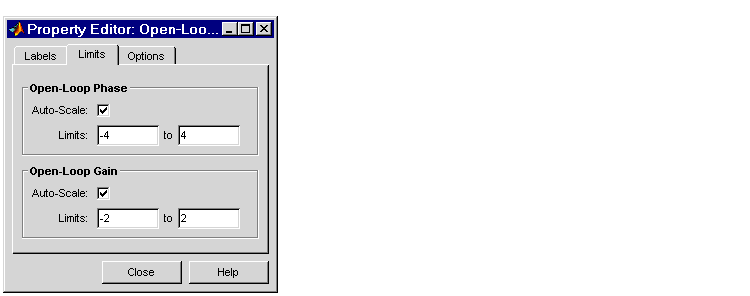

The Control System Toolbox sets default limits for the frequency, magnitude, and phase scales for your plots. Use the Limits page to override the default values.

To change the limits, specify the new values in the Limits fields for open-loop phase and/or gain. The Auto-Scale checkbox automatically deactivates once you click in a different field. The Nichols plot updates immediately.

To restore the default settings, recheck the Auto-Scale boxes.
