Customization

Open-Loop Nichols Property Editor

As is the case with the root locus Property Editor, there are three ways to open the Nichols plot property editor:

• Double-click in the Nichols plot away from the curve
• Select Properties from the right-click menu
• Select Open-Loop Nichols and then Properties from Edit in the menu bar

Note    Click on the page tabs below to get help on pages in the Open-Loop Nichols Property Editor.

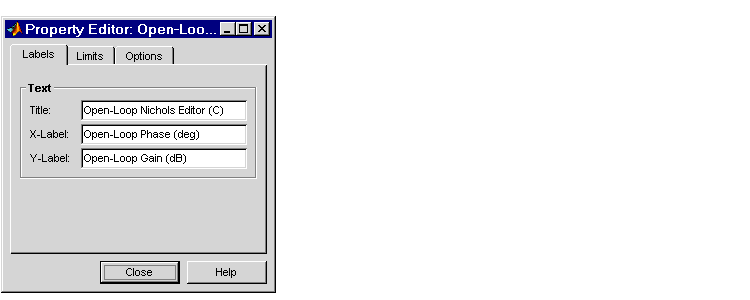

This figure shows the Property Editor: Open-Loop Nichols editor.

Options Page

Labels Page
