Open-Loop Bode Property Editor

The Property Editor for open-loop Bode diagrams is identical to the one for root locus, with one exception, the Options page. Also, note the prefilter and open-loop Bode diagram property editors are identical.

As is the case with the root locus Property Editor, there are three ways to open the Bode diagram property editor:

• Double-click in the Bode magnitude or phase plot away from the curve
• Select Properties from the right-click menu
• Select Open-Loop Bode and then Properties from Edit in the menu bar

Note    Click on the page tabs below to get help on pages in the Open-Loop Bode Property Editor.

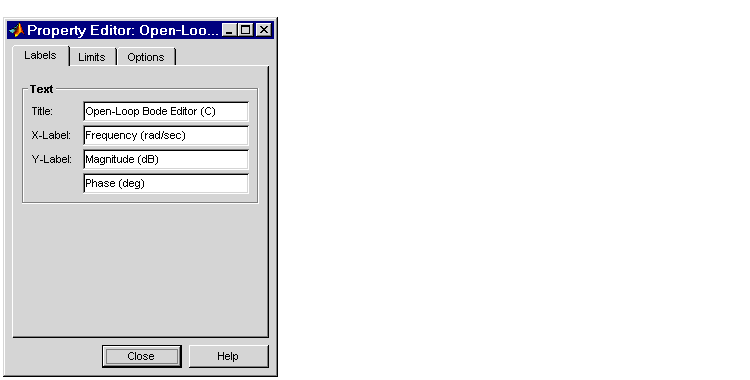

This figure shows the Property Editor: Open-Loop Bode editor.

Options Page

Labels Page
