Using the Simulink LTI Viewer
To learn about the Simulink LTI Viewer, this section presents an example that shows you how to linearize a portion of the Simulink model for an F14 jet aircraft. To open the F14 jet aircraft model, type
This opens the following diagram.

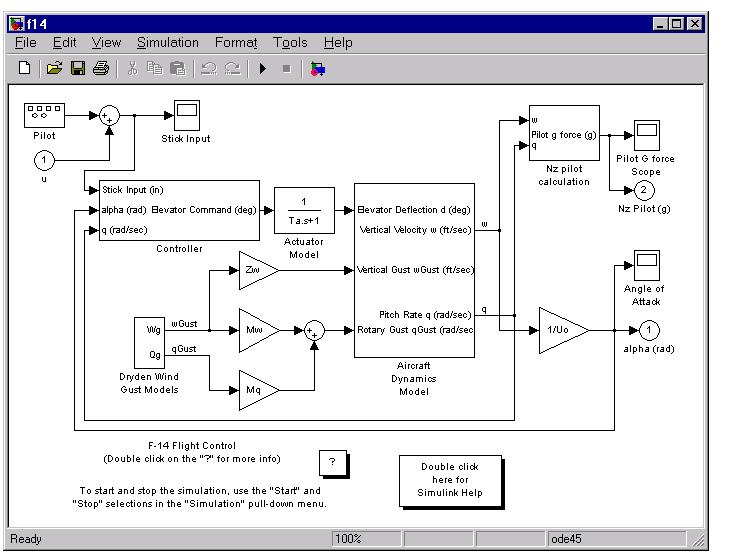

Figure 3-19: Nonlinear Model of F14 Aircraft Pitch Axis
This Simulink model, f14, contains static nonlinearities. You can use the Simulink LTI Viewer to analyze linearized versions of this model.
