Paper orientation refers to how the paper is oriented with respect to the figure. The choices are portrait (the default), landscape, and rotated.

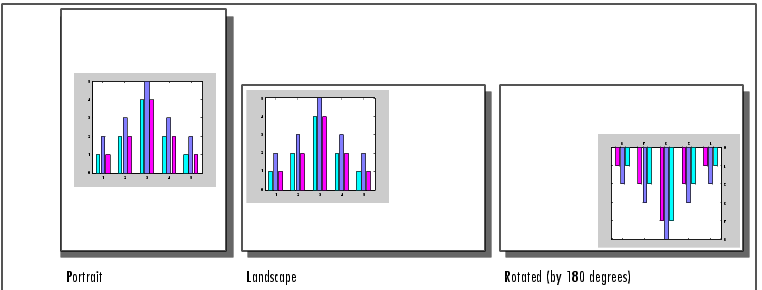

The figure below shows the same figure printed using the three different orientations.
Figure 2-1: The Paper Orientation Settings Available in MATLAB
Note The rotated orientation is not supported by all printers. When the printer does not support it, landscape is used. |
Changing Paper Orientation
To change the paper orientation, use any of the following:
PaperOrientation
property or orient
command
Changing the orientation can change the paper's size setting. See Relationships Among Settings.
Using the Page Setup Dialog Box
For detailed information about the Paper tab of the Page Setup dialog box, see its context sensitive help by clicking its Help button.
Using MATLAB Commands
Use the PaperOrientation
figure property or the orient
function. Use the orient
command if you always want your figure centered on the paper.
The following example sets the orientation to landscape
,
If you set the PaperOrientation
property from portrait
to either of the other two orientation schemes, you may find that what was previously a centered image is now positioned near the paper's edge. You can either adjust the position (use the PaperPosition
property), or you can use the orient
command, which always centers the figure on the paper.
The orient
function takes the same argument names as PaperOrientation
, for example,
Because orient
is a function, you do not have to supply its arguments as strings. The above call could also be entered as

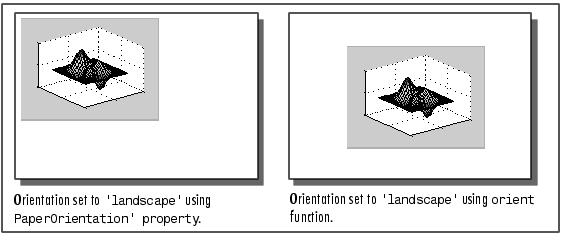

Figure 2-2: Results Using the PaperOrientation Property vs. the orient Command
