Starting the Source Control System

To start the source control system:

1. Select Source Control -> Start Source Control from the File menu in the MATLAB Editor, Simulink model, or Stateflow model.

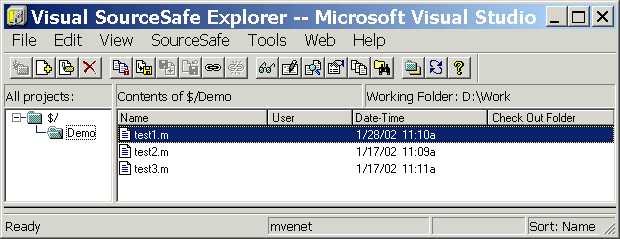

1. The dialog box from the currently selected source control system opens. Below is the Microsoft Visual SourceSafe Explorer dialog box.

Function Alternative for Starting Source Control

Note    For MATLAB command window access to the source control interface, you must first create a window and get its handle. See Using the Source Control Interface from the MATLAB Command Window for instructions on doing this.

Use runscc as the first argument in the verctrl function to start the currently selected source control system. The verctrl function with the runscc argument has this form:

1. verctrl('runscc',winhandle);
