Example: Principal Components Analysis

Let us look at a sample application that uses nine different indices of the quality of life in 329 U.S. cities. These are climate, housing, health, crime, transportation, education, arts, recreation, and economics. For each index, higher is better; so, for example, a higher index for crime means a lower crime rate.

We start by loading the data in cities.mat.

• load cities
  whos
    Name             Size         Bytes  Class
    categories       9x14           252  char array
    names          329x43         28294  char array
    ratings        329x9          23688  double array


The whos command generates a table of information about all the variables in the workspace.

The cities data set contains three variables:

• categories, a string matrix containing the names of the indices.
• names, a string matrix containing the 329 city names.
• ratings, the data matrix with 329 rows and 9 columns.

Let's look at the value of the categories variable.

• categories

  categories =
     climate
     housing
     health
     crime
     transportation
     education
     arts
     recreation
     economics


Now, let's look at the first several rows of names variable.

• first5 = names(1:5,:)
  first5 =
     Abilene, TX
     Akron, OH
     Albany, GA
     Albany-Troy, NY
     Albuquerque, NM


To get a quick impression of the ratings data, make a box plot.

• boxplot(ratings,0,'+',0)
  set(gca,'YTicklabel',categories)

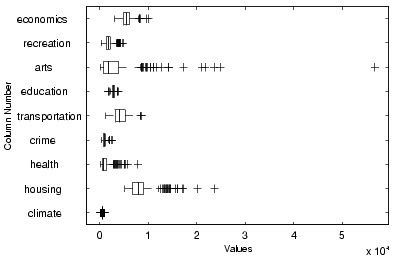

These commands generate the plot below. Note that there is substantially more variability in the ratings of the arts and housing than in the ratings of crime and climate.

Ordinarily you might also graph pairs of the original variables, but there are 36 two-variable plots. Perhaps principal components analysis can reduce the number of variables we need to consider.

Sometimes it makes sense to compute principal components for raw data. This is appropriate when all the variables are in the same units. Standardizing the data is reasonable when the variables are in different units or when the variance of the different columns is substantial (as in this case).

You can standardize the data by dividing each column by its standard deviation.

• stdr = std(ratings);
  sr = ratings./repmat(stdr,329,1);


Now we are ready to find the principal components.

• [pcs,newdata,variances,t2] = princomp(sr);


The following sections explain the four outputs from princomp:

• The Principal Components (First Output)
• The Component Scores (Second Output)
• The Component Variances (Third Output)
• Hotelling's T² (Fourth Output)
